Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance

Product Categories
Qingdao KXD Steel Structure Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

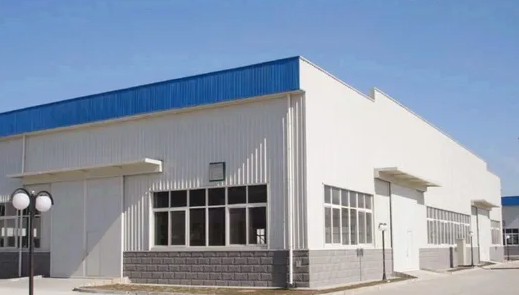

Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance

Model Number : KXD-EQUIPMENT

Purlin : C.Z Shape Steel Channel

Parapet Wall : As Requested

Price : 20-80 USD per sqm

Steel Structure : H steel

Payment Terms : T/T

Productname : Steel Structure Building

Maintenance Costs : Reduced

MOQ : 500 square meters

Delivery Time : 15-35days

Windloadresistance : Up to 0.45 kN/m² or higher

Exterior Wall Panel : Sandwich Panel

Level : Multi levels

Design Style : Modern

Third Party Test : SGS, BV, ITS

Certification : CE, ISO 9001, ISO140001, ISO45001

Window : Aluminum Alloy Window

Supply Ability : 3000 Sets/Month

Ventilation System : Automatic Ventilation System

Brand Name : KXD

Product Resistance : Corrosion Resistant

Place of Origin : shandong qingdao

Column : welded H beam

Seismicresistance : Designed according to local seismic codes

Thermalinsulation : Available with insulation panels

Packaging Details : Steel Pallet Or In Bulk

Contact Now

Prefabricated Steel Structure Workshop Warehouse with Easy Installation
Light steel structure is a versatile and robust building system widely used in industrial, agricultural, commercial, and service applications. Suitable for offices, villas, warehouses, stadiums, entertainment venues, tourist buildings, and low-to-multi-story residential projects, it is also ideal for building additions, renovations, reinforcements, and areas with material shortages or challenging transportation. Its quick construction, mobility, and ease of demolition make it a preferred choice for many clients.
Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance
Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance
Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance
Technical Specifications
No. Category Name Specification & Parameter
1 Type Standardization Custom made products, designed and manufactured according to client requirements
2 Assembly Disassembly & Assembly Not suitable for repeated assembly/disassembly, lower reuse factor
3 Specification Length No limit, expansion joint required when length exceeds 200m
4 Specification Width ≤ 11m
5 Specification Height ≤ 3.0m
6 Specification Roof Slope Double slope, 1:6 - 1:4
7 Specification Floors 1 floor
8 Standard Ground Channel Galvanized steel panel, thickness 0.8mm
9 Standard Post Outdoor square steel pipe, Q235 material, painted surface
10 Standard Roof Beam Triangle roof frame welded from square steel pipe, rust-proof surface
11 Standard Purlin Square steel pipe, Q235 material, rust-proof surface
12 Standard Wallboard 75mm-150mm color steel sandwich panel, white color
13 Standard Roof Board (Ceiling) 75mm-150mm color steel sandwich panel, white color
14 Standard Roof Tiles V35-125-350 color steel tiles, blue or red color
15 Standard Door Sandwich panel door, size: 750mm × 2000mm
16 Standard Window PVC sliding window, conch model
17 Options Ceiling Roof board serves as ceiling, no additional ceiling required
18 Options Canopy Color steel sheet or color steel sandwich panel canopy
19 Options Door Compound wooden door, security door, aluminum alloy door
20 Options Electrical Accessories Supply plan, design and construction per national norms (220V, 50Hz, with lamps, switches, multi-function sockets)
21 Options Water Plumbing Supply plan, design and construction per national norms
22 Options Sanitary Ware Supplied according to customer needs
23 Options Furniture & Appliances Designed according to client requirements
24 Design Parameter Roof Dead Load 0.3 KN/m²
25 Design Parameter Roof Live Load 0.5 KN/m²
26 Design Parameter Wind Load 9 degree, 0.35 KN/m², design speed: 24m/S (Chinese standard)
27 Design Parameter Earthquake Resistance 6 degree intensity
28 Design Parameter Temperature Range -25°C to +50°C
29 Installation Tools Electric drill, rivet gun, electric hammer, spanner, screwdriver (requires power source)
30 Installation Efficiency Four skilled laborers can erect 40m² house body per day
31 Transport Container Each 40ft container can load 130-150m² house body material
  • Shock resistance
  • Wind resistance
  • Durability
  • Thermal insulation
  • Acoustical insulation
  • Fast installation
  • Environmental protection and energy saving
Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance
Why Choose Us?
  • Exceptional Durability: High-tensile steel frames resistant to termites, fire, and corrosion
  • Rapid Deployment: Modular design enables 30-50% faster installation
  • Custom Engineering: Tailored CAD/Tekla designs optimize material usage
  • Eco-Friendly: Over 90% of materials are fully recyclable
Primary Applications
  • Industrial: Logistics warehouses and manufacturing plants
  • Commercial: Shopping malls and automobile showrooms
  • Agricultural: Large-span poultry houses and grain storage
Our Company
Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance
Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance
Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance
Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance
Frequently Asked Questions
How long does it take to deliver a steel structure building?
Generally, the production cycle is 30-45 days after the design is finalized. Shipping time depends on the destination port, typically ranging from 15 to 40 days.
Can your steel buildings be customized to specific local building codes?
Yes, our engineering team can design the structure to meet specific local wind speeds, snow loads, and seismic requirements according to international standards.
What maintenance is required for a steel structure?
Steel buildings require very low maintenance. Periodic inspections of the paint or galvanized coating and clearing of roof gutters are usually sufficient to ensure a lifespan of over 50 years.

Product Tags:

Easy installation prefabricated steel building



Corrosion resistant steel building



Wind load resistant steel building


China Prefabricated Steel Structure Building with Easy Installation Corrosion Resistant and Wind Load Resistance wholesale
